AFTINNOVATM EF（AEF）series
Moisture barrier adhesive/encapsulation film
In-page Navigation
FD, EB, and SE Series
What is moisture barrier adhesive/encapsulation film?
It is an adhesive/encapsulation film well-suited for encapsulating moisture-sensitive devices such as OLEDs and conductive substrates.

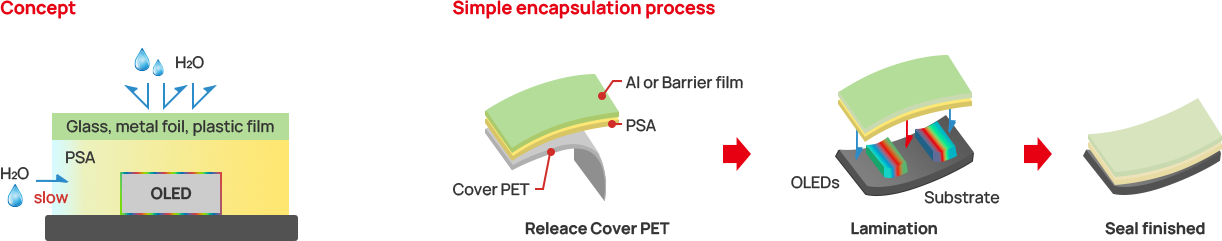

A simple lamination process enables film thickness control, which is difficult with liquid encapsulation.
We also offer transparent and pressure-sensitive types for which room-temperature encapsulation is possible.
Have you experienced these issues?
Protecting the element from water vapor and oxygen
case
01
Avoiding application of heat during encapsulation
case
02
Need encapsulant that provides transparency
case
03
Here is the product that resolves these issues.
Moisture barrier adhesive/encapsulation film
Lineup and features
| Pressure-sensitive type (Room-temperature encapsulation possible) |
FD series | Achieves transparency, moisture absorption, and adhesion, and has good flex resistance. |
| EB series | High-reliability type, non-transparent | |
| Low-temperature thermosetting type | SE series | Low-temperature curing at 100degC, good embedability, non-transparent |
Typical characteristics
| Evaluation item | Unit | FD28 | EB01 | SE03 | General OCA | Condition |
|---|---|---|---|---|---|---|
| Feature | - | Transparency | High reliability | Thermosetting | ||
| Cure condition | - | No need（PSA type） | 100deg.C - 30min | - | ||
| Standard Thickness | μm | 10, 20, 50 | 20, 50 | - | - | |
| 90deg. peel strength | gf/cm | 700 | 400 | 650 | 500 | Al foil/Adhesive/Glass |
| Transmittance | % | 90 | 50 | Non-transparent | >90 | D65 |

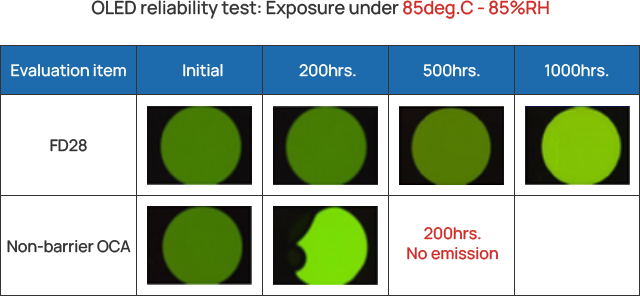

| Barrier ability Ca test, 85deg.C-85%RH |
hrs. | 160 | 1000 | 60 | <24 | Bezel: 2 mm |
These data are measurement values, not the values for guaranteeing.
The contents in this sheet may be revised without prior notice.
The contents in this sheet may be revised without prior notice.
Application example
Prevents water vapor ingress and increases reliability in OLED and transparent electrode encapsulation applications.
Application process
Telephone or form inquiry
Inquire about customer issues, required characteristics
Propose and send samples for evaluation
Customer evaluation
Interview regarding results of evaluation
When it is difficult to use existing products
Consultation and consideration of development themes
